Xline
Xline Wall Mount X-ray PN: XDC
Xline Wall Mount X-ray PN: XDC
Regular price
$3,500.00
Regular price
Sale price
$3,500.00
Unit price
/
per
Couldn't load pickup availability
This state of the art DC device with its modern design will fit perfectly into your dental studio and has the flexibility to give you excellent image quality in all your clinical cases. Its technology is fulfilling the highest standards for low dose digital imaging and with three presets, for all receptor types, is universally usable for digital sensors, phosphor plates or films.
Options
- Choose among 4 different extension arm lengths to make your intraoral unit perfectly fit into your dental studio. You can select standard 30 cm, 60 cm or 80 cm and optional 100 cm arm.
- Xline’s rectangular beam limiting device (2x3cm or 3x4cm) permits significant dose reduction.

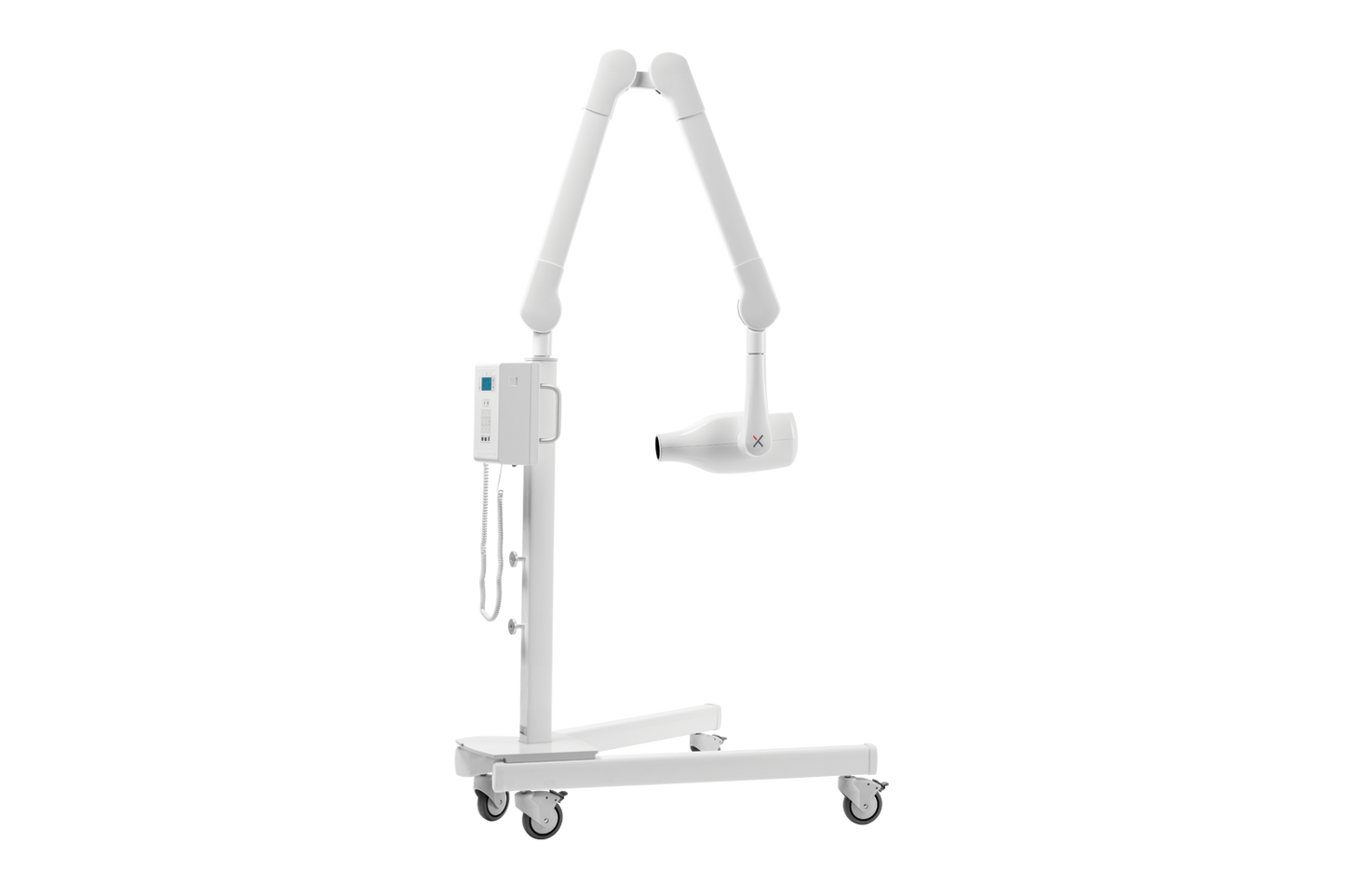

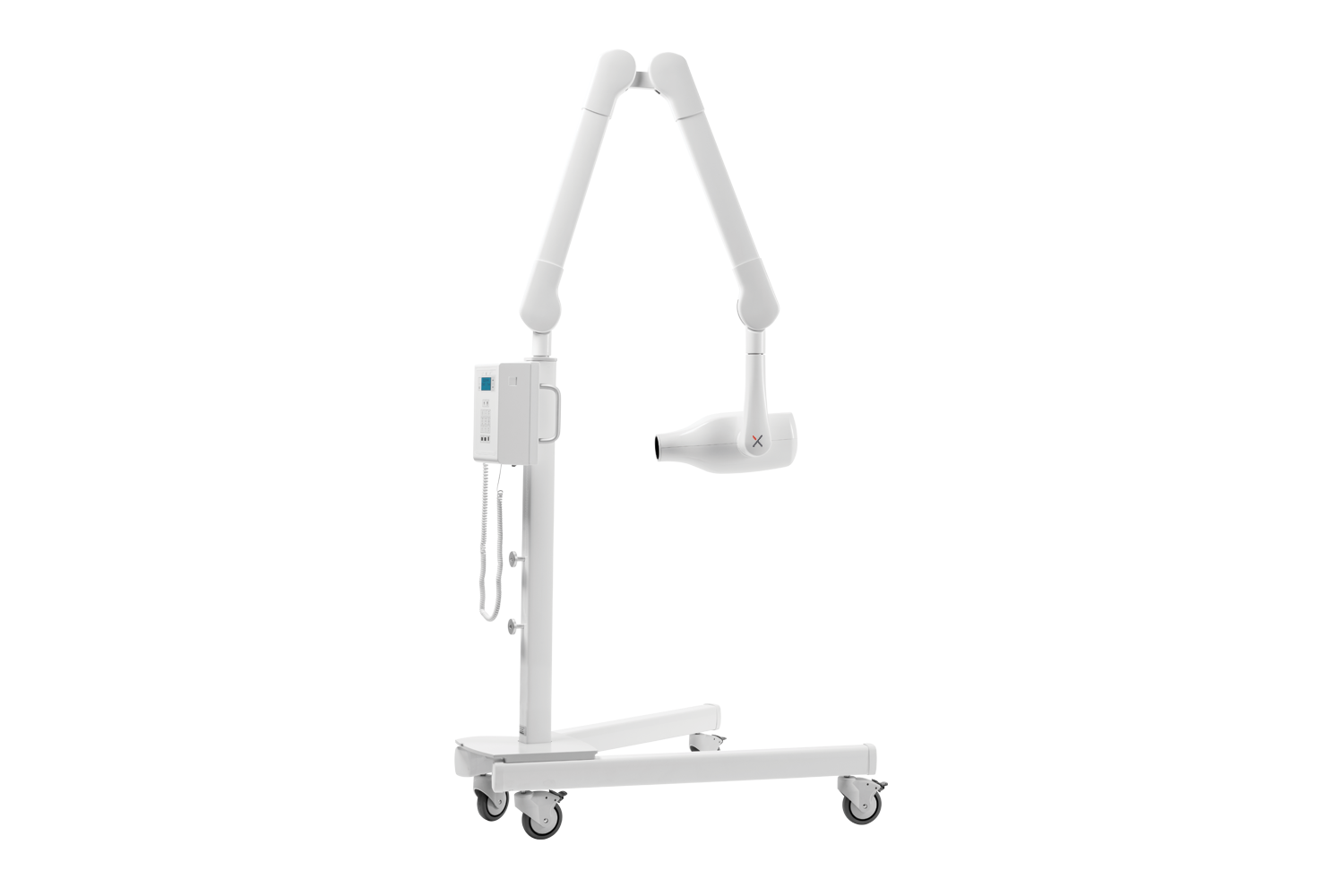

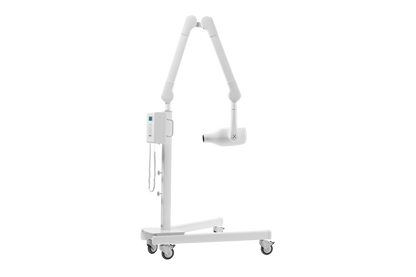

- The mobile version is the ideal choice for dental clinics looking for maximum operational flexibility.
- 20/21 cm standard or 30 cm optional collimator available.
- With a cable length of 10 m, the remote hand switch is easy to mount where needed.
Generator | Direct Current (DC) |
Focal Spot | 0.4 (IEC 336/1997) |
Tube voltage, tube current | 60/70 kV (selectable), 7 mA |
Line voltage | 100/230V, 50/60 Hz |
Focus - skin distance | Standard 20cm (optional 30cm) |
Exposure time | 0,01 - 3.2 s / 0,07 - 22,4 mAs |
Patient Sizes | Adult, Child |
Number of anatomical regions | 9 |
