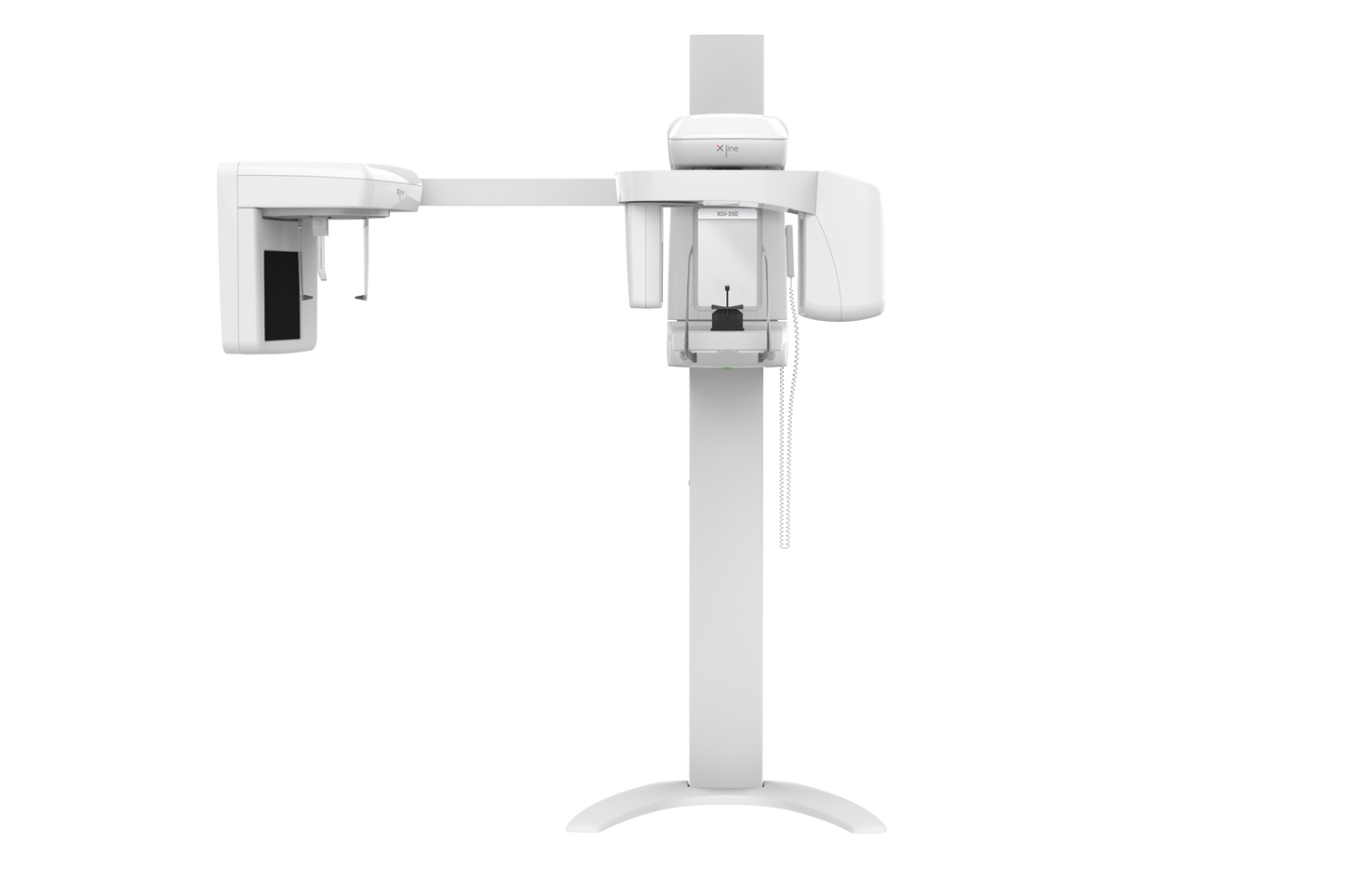

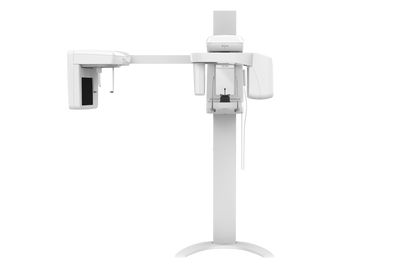

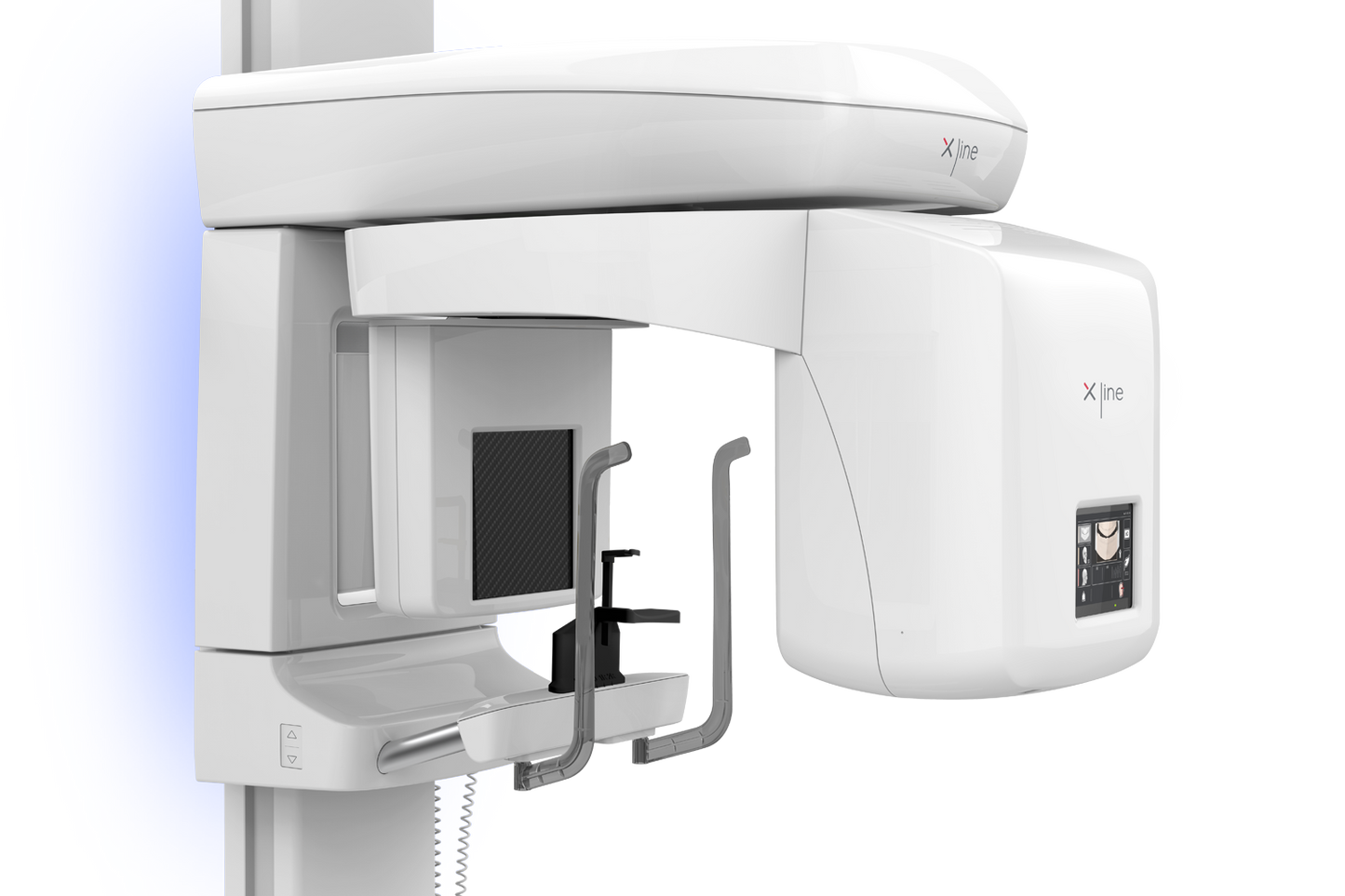

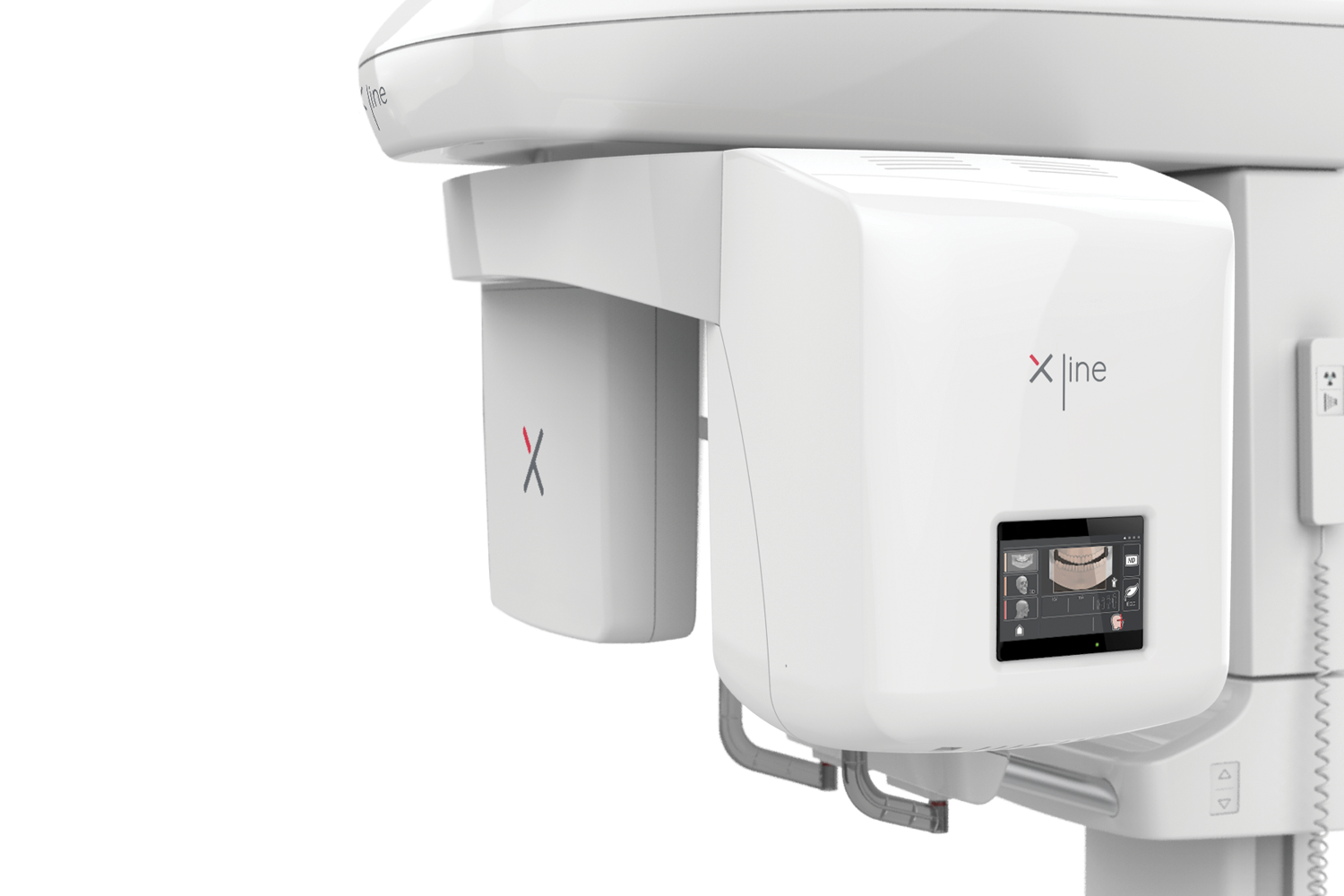

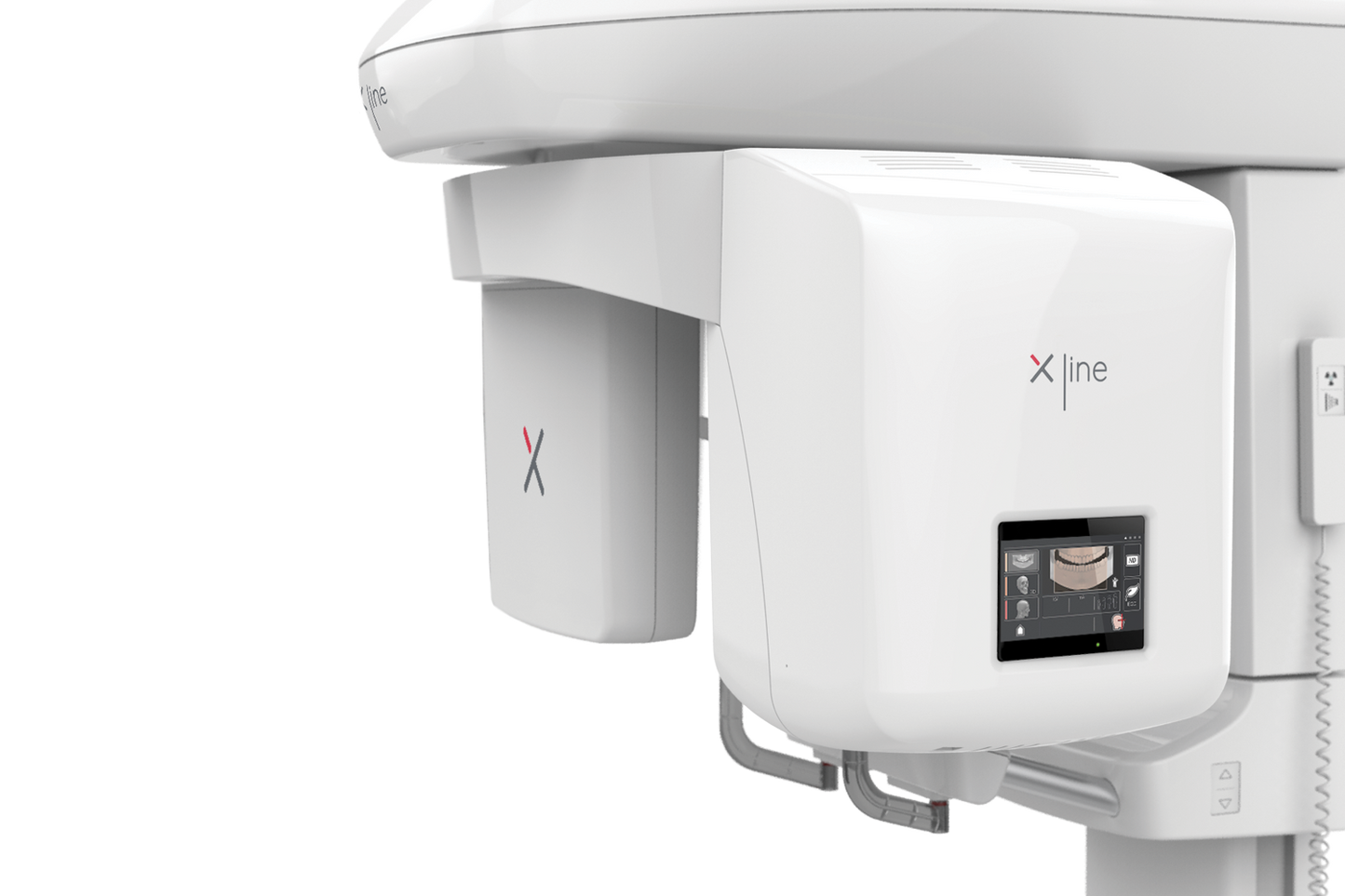

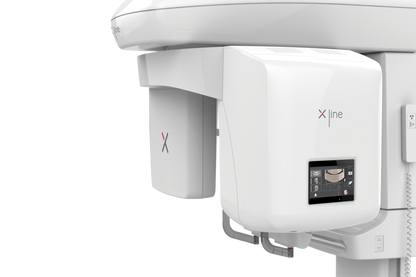

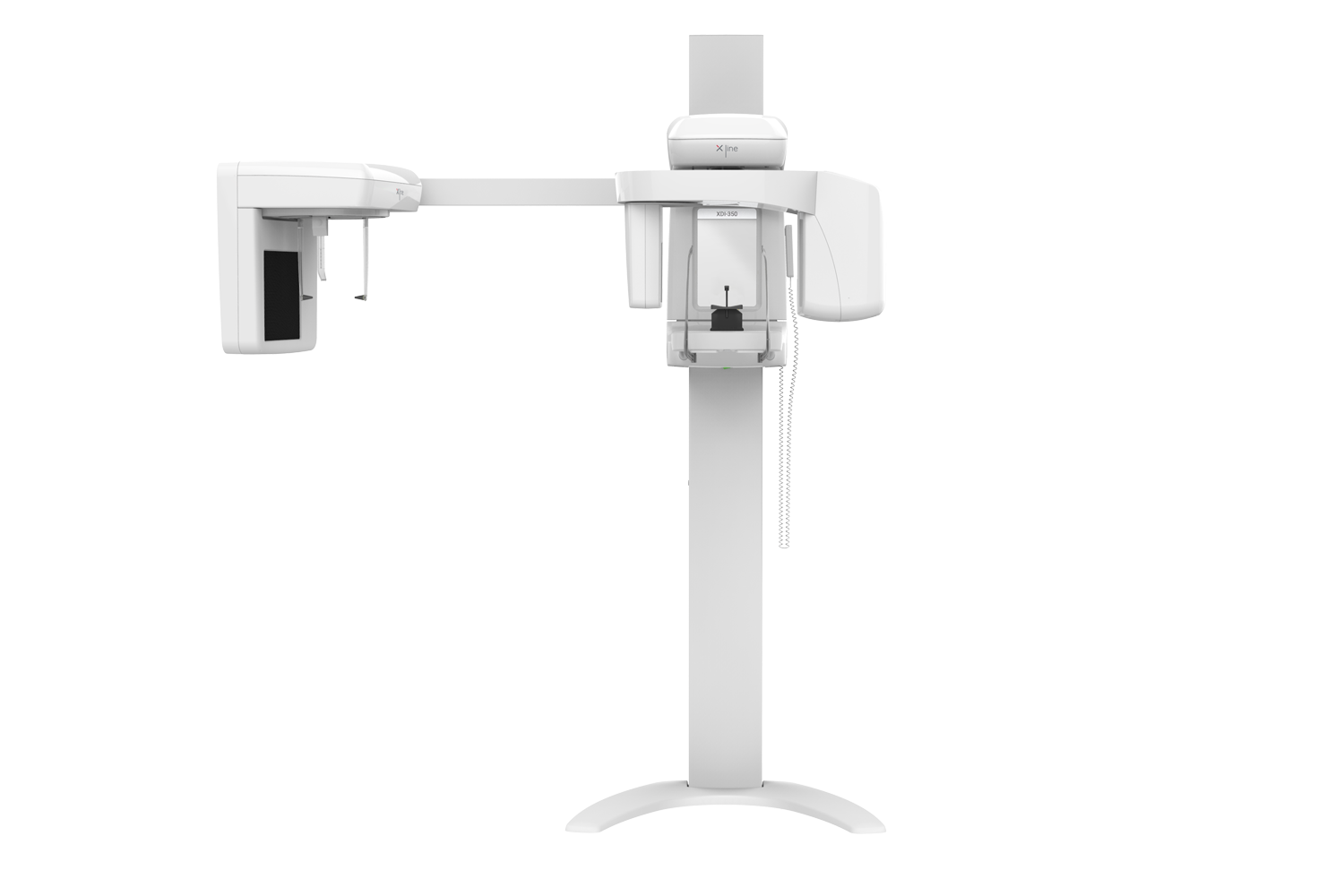

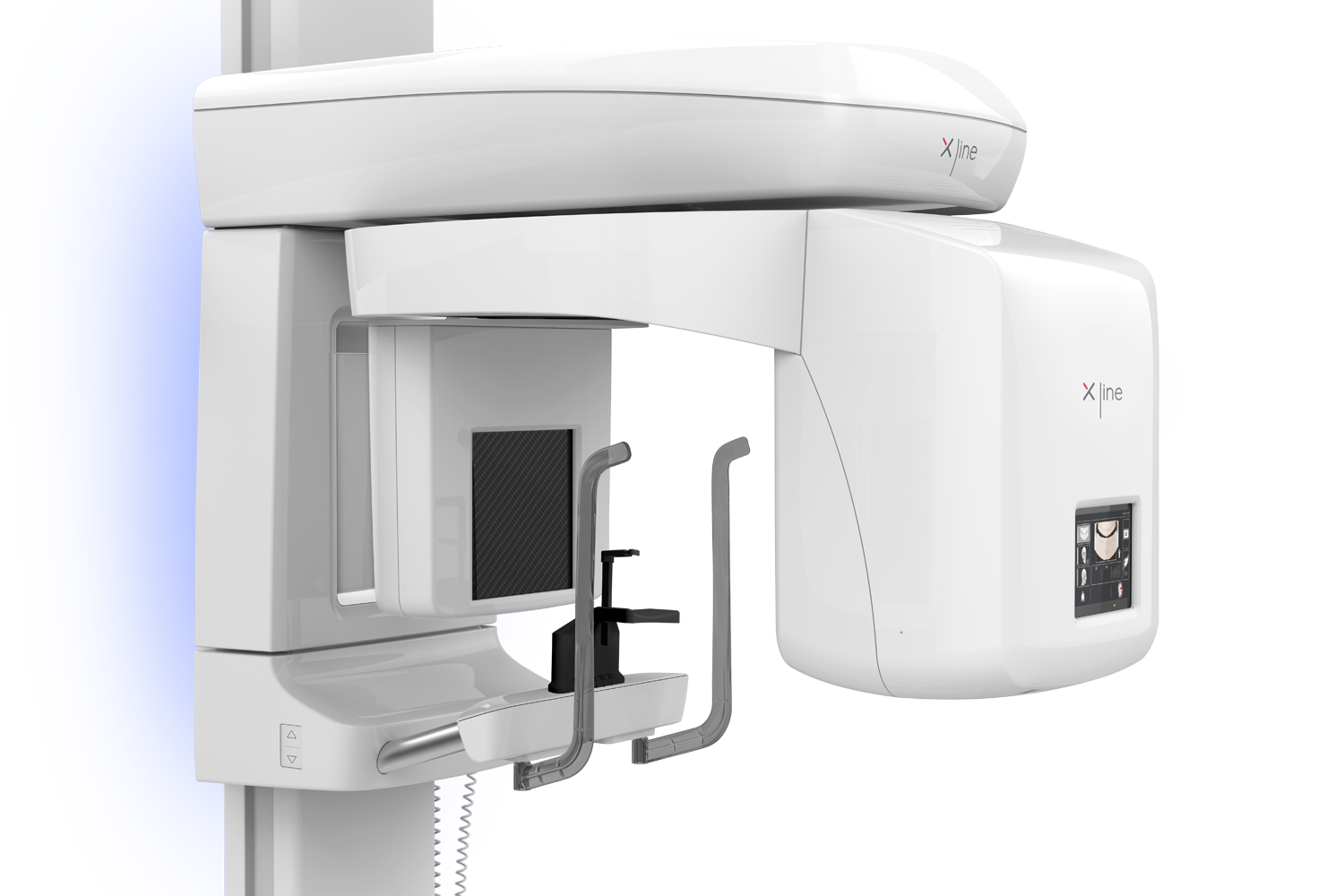

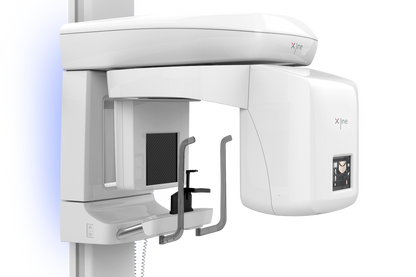

Xline Stellaris 3D CBCT X-ray PN: XDI-300
Xline Stellaris 3D CBCT X-ray PN: XDI-300
Regular price
$47,000.00
Regular price
Sale price
$47,000.00
Unit price
/
per
Couldn't load pickup availability
XDI-300 and XDI-350 (Stellaris 3D) is a complete and compact fully upgradeable 3D CBCT, Panoramic and Cephalometric system, which covers an entire range of applications – from endodontics, periodontology, surgery, implantology to orthodontics – everything you need in your daily practice.
| Sensor Technology | CMOS Flat Panel, CSI Flat Panel for ceph |
| Pixel size | 98 µm |
| Voxel Size | 80 µm |
| Focal Spot | 0.5 (IEC 336 / 1997) |
| Tube Voltage | 60 - 86 kV |
| Tube Current | 2.5 - 10 mA |
| Exposure time 2D | 4.6 - 14.2 seconds |
| Exposure time 3D | 5 - 16.9 seconds |
| Exposure Time Ceph One-Shot | 0,5s adult, 0,2s child |
| 3D Active Sensor Area | 160x160 mm |
| Ceph Image Size | 240x300 mm |
| Volume size 3D | 5x6,5, 7x6,5, 6x10, 8x6,5, 8x10, 11x6,5, 11x10 |
| Weight | 109kg without ceph, 137kg with ceph |
| Panoramic Programs | in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth. |
| 3D Programs | in total 27: adult full, child full, adult and child upper and lower jaw, adult and child sinuses, surgical and implant volume front, left and right, hemi-arc left and right, upper and lower, ENDO volume in 6 different positions, TMJ right and left. |
| Ceph Programs | LL 30x24, LL18x24, AP, PA, Carpus |
| Patient Sizes | Child, teenager, woman, man |
| Software | X-Light |
| Features | 3 in 1 or 2 in 1 upgradeable to 3 in 1 |
| Footprint | 140x110 cm without CEPH, 240 x 110cm with CEPH |
| Patient position | Standing or sitting |
| Wheelchair acessible | Yes |
