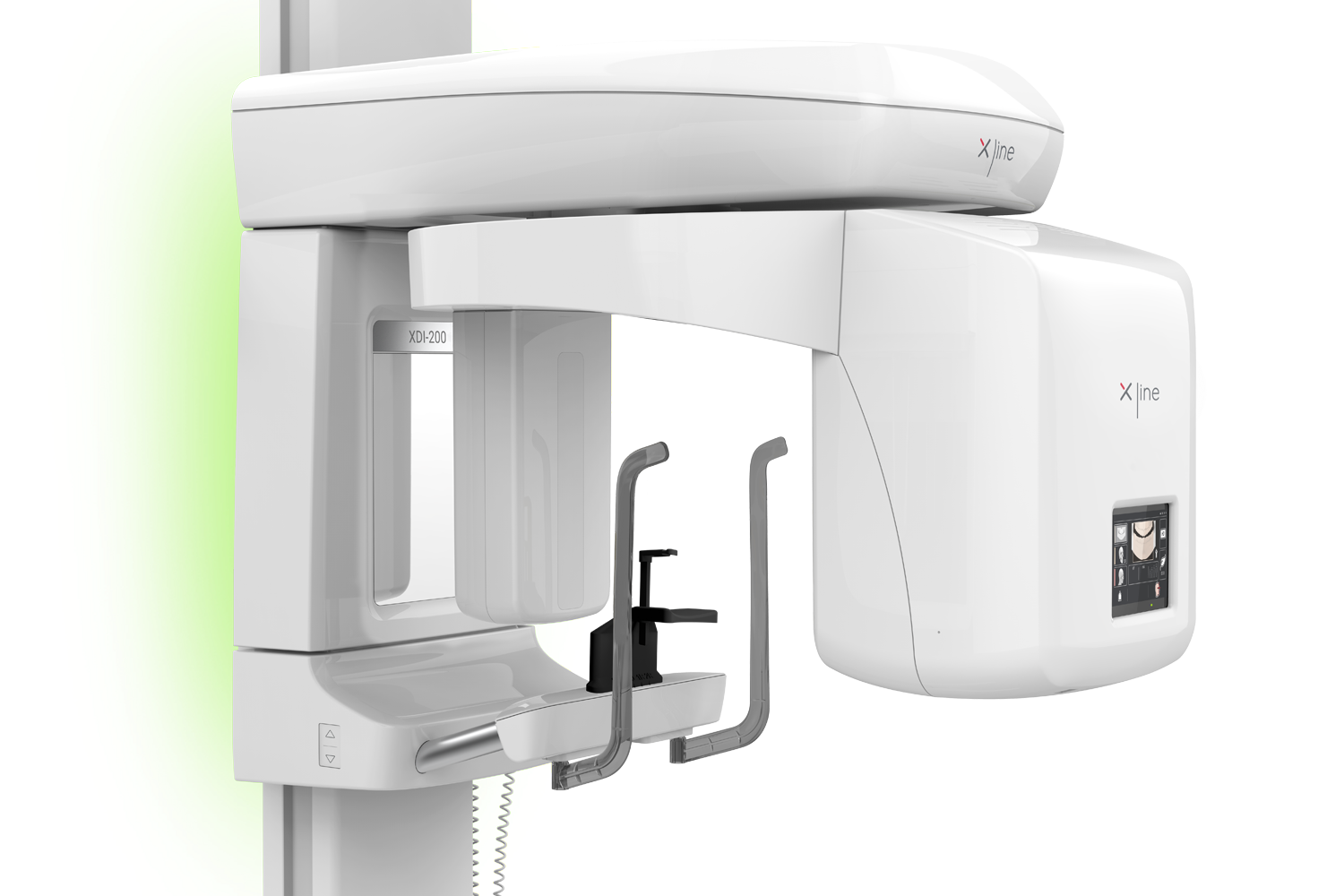

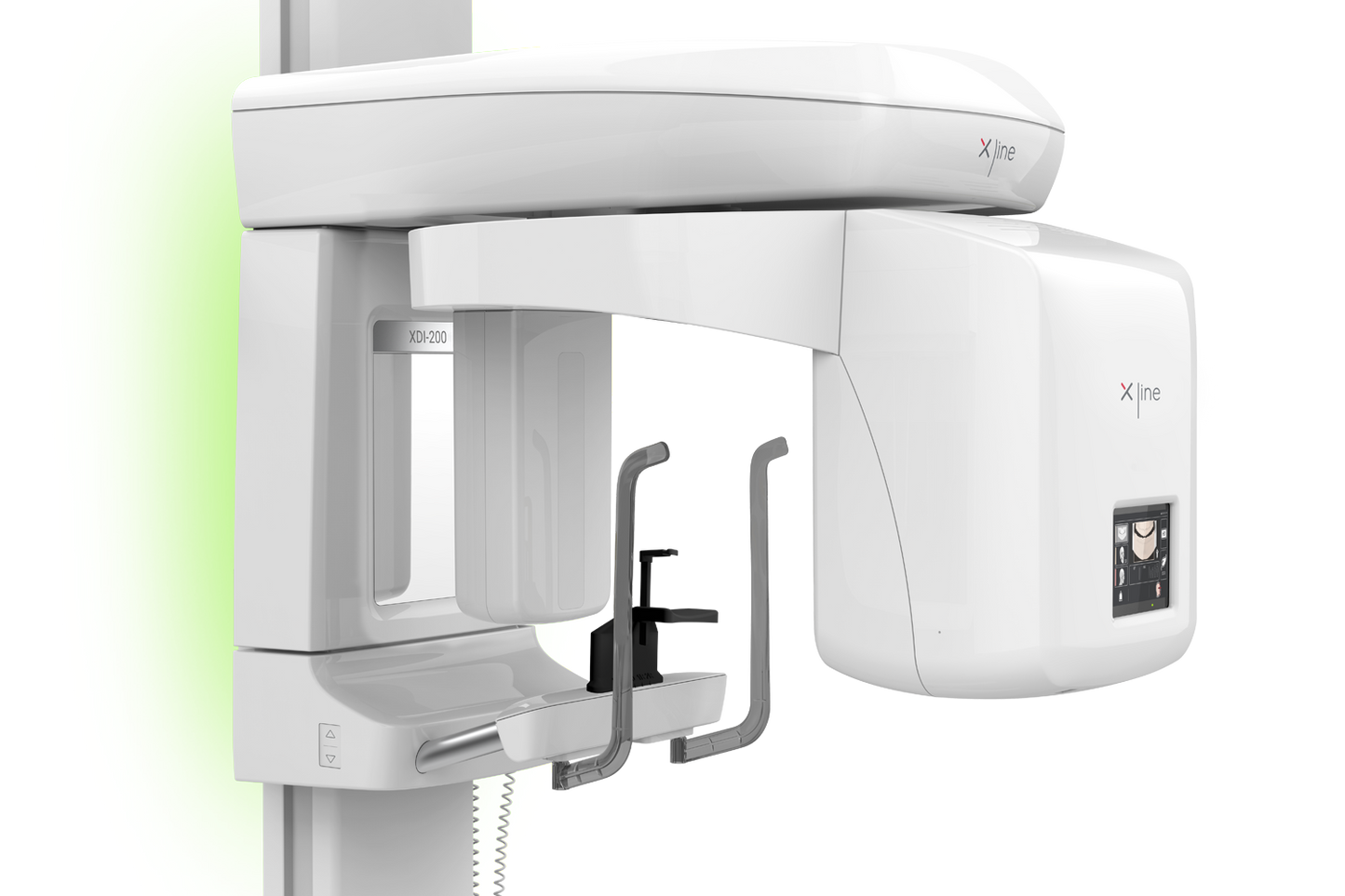

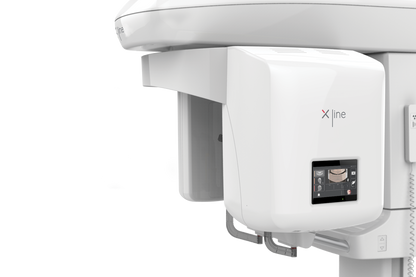

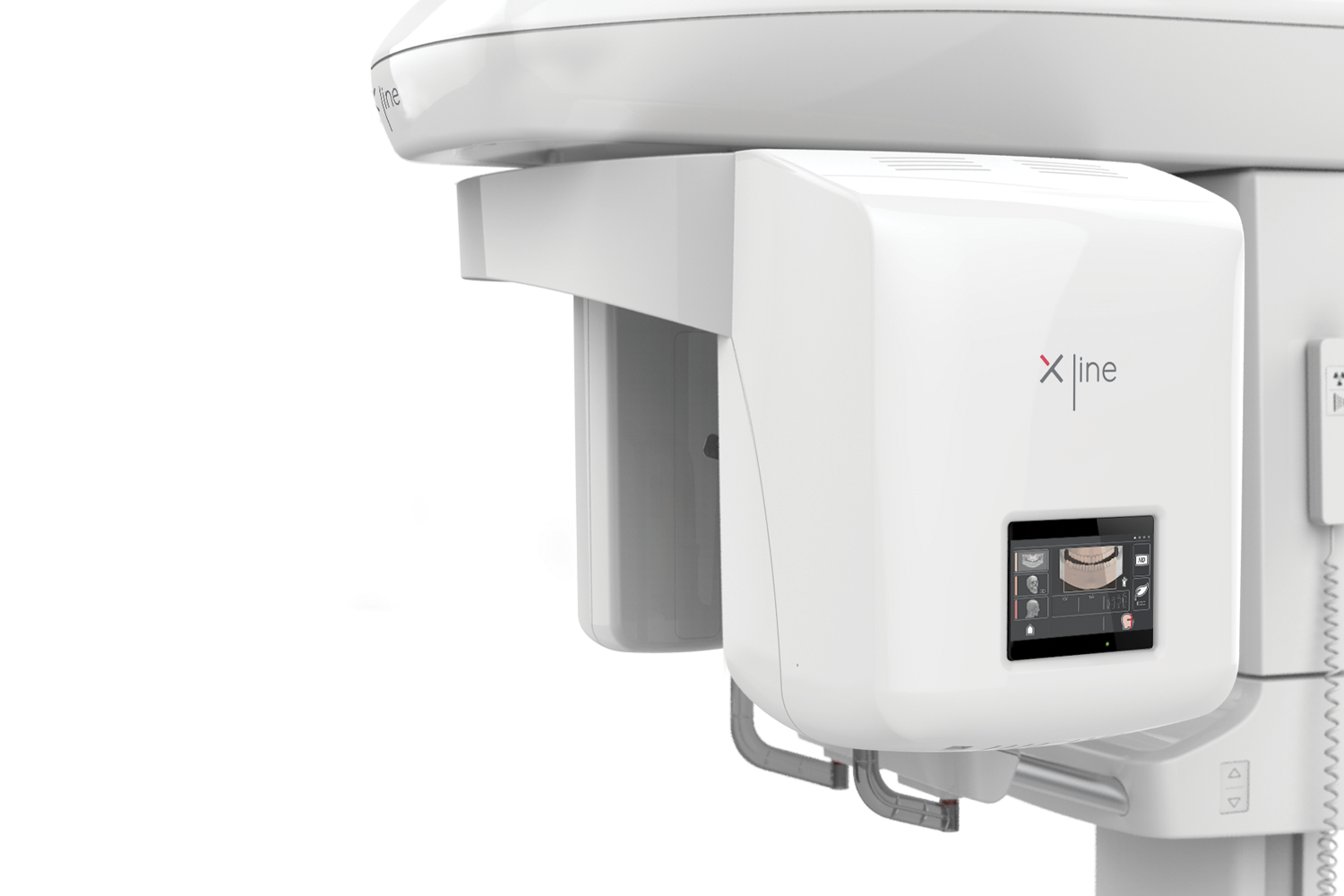

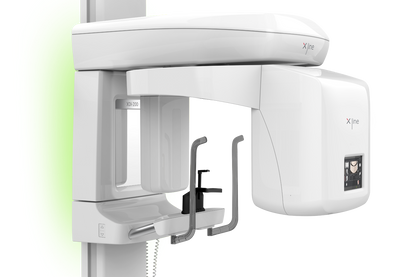

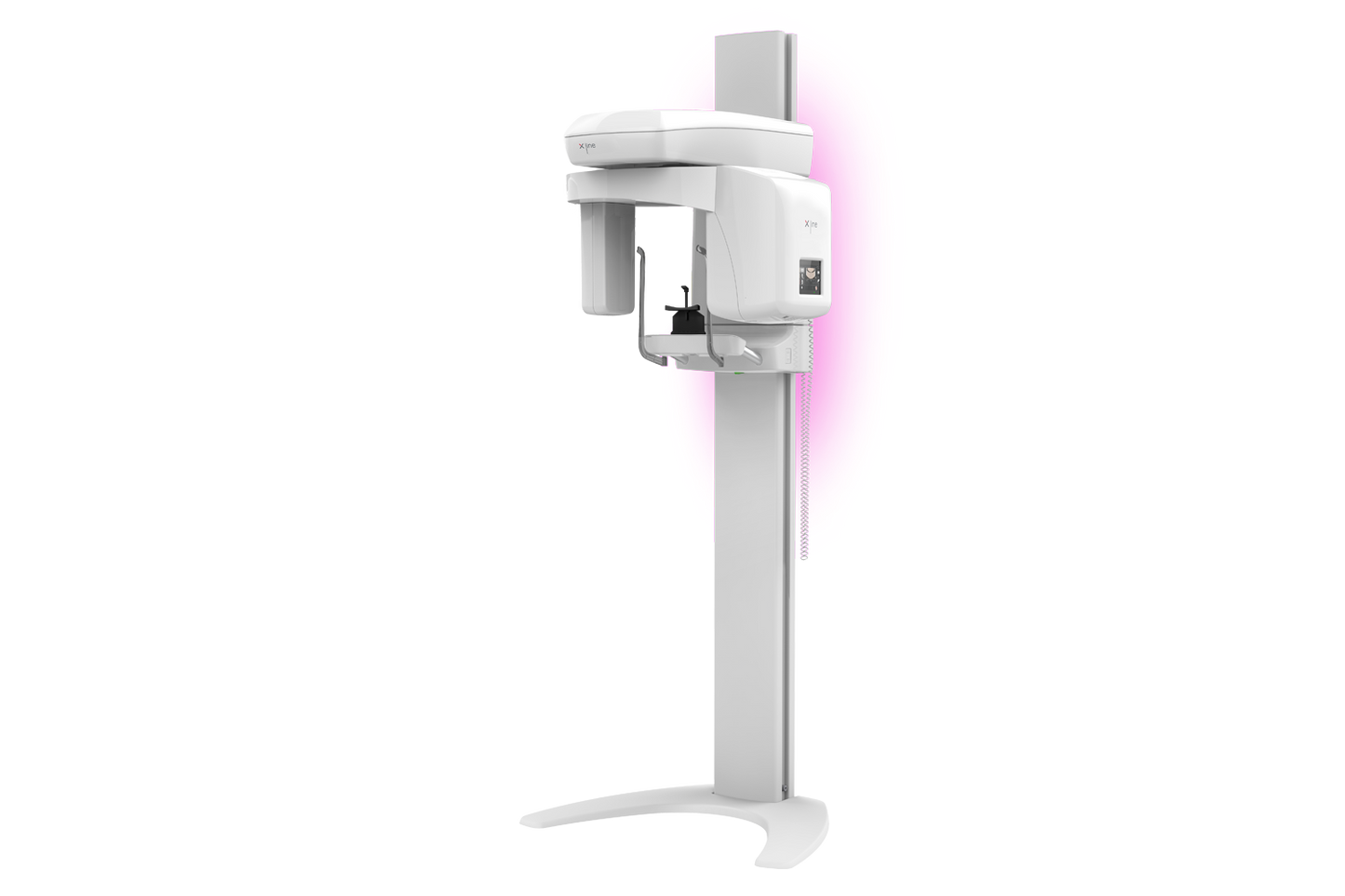

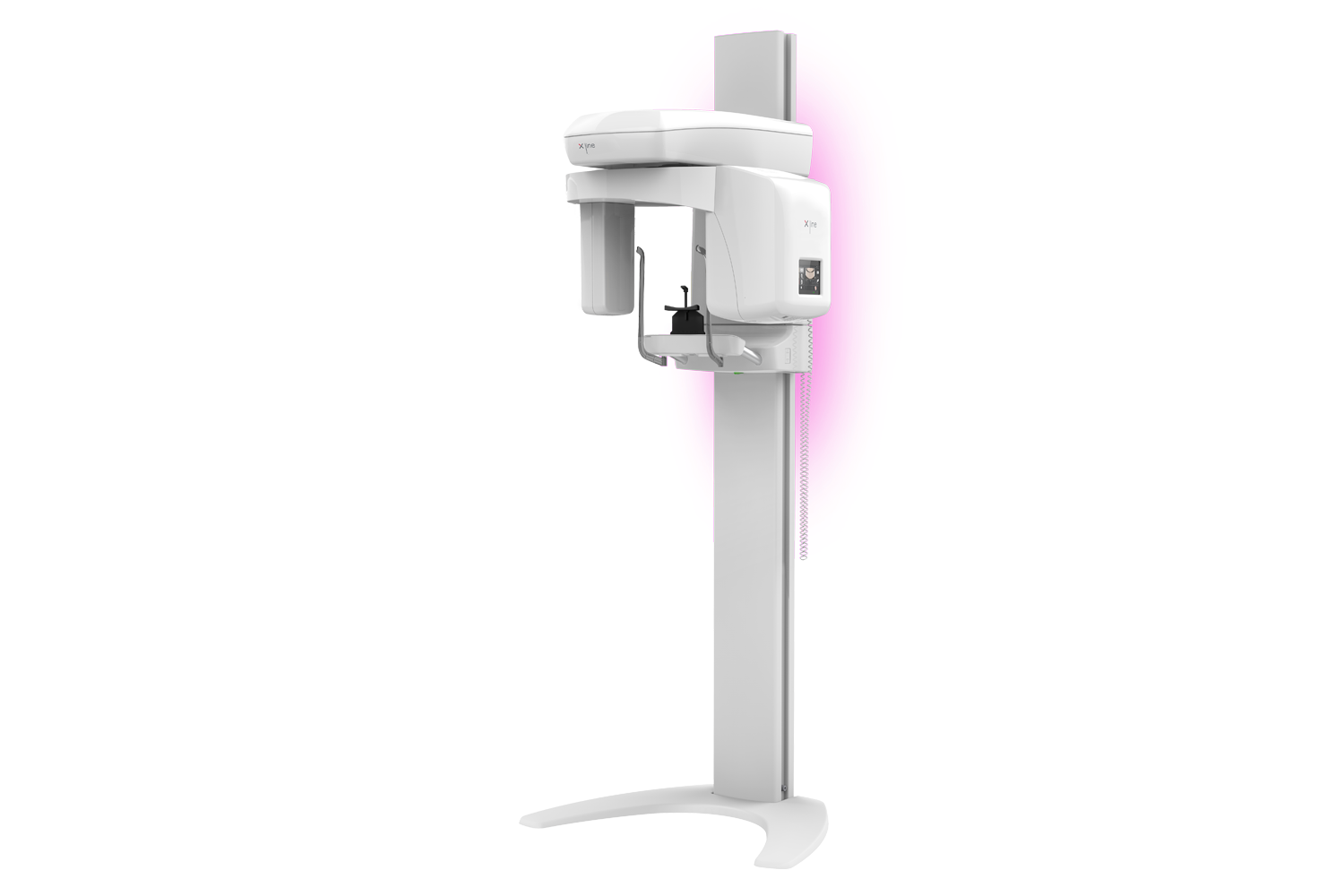

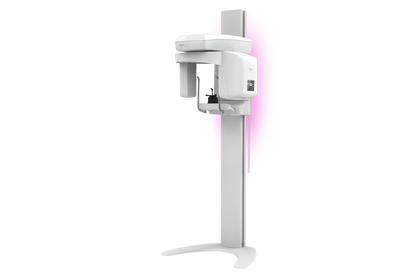

Xline Stellaris 2D Panoramic X-ray PN: XDI-200

Xline Stellaris 2D Panoramic X-ray PN: XDI-200

Regular price $27,000.00
Regular price Sale price $27,000.00
Sale Sold out
With or Without Ceph

XDI-200 and XDI-250 (Stellaris 2D) is the most innovative panoramic of the Xline portfolio. Based on the well-known and reliable XDI-300 (Stellaris 3D) platform, it offers a brilliant new image quality, thanks to the new dynamic image focusing technique.

  • Ready for Every Diagnosis
  • Compact and Modern
  • Power of touch

Sensor Technology

CMOS Flat Panel, CSI Flat Panel for ceph

Pixel size

98 µm

Focal Spot

0.5 (IEC 336 / 1997)

Tube Voltage

60 - 86 kV

Tube Current

2.5 - 10 mA

Exposure time 2D

4.6 - 14.2 seconds

Exposure Time Ceph One-Shot

0,5s adult, 0,2s child

Ceph Image Size

240x300 mm

Weight

109kg without ceph, 137kg with ceph

Panoramic Programs

in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.

Ceph Programs

LL 30x24, LL18x24, AP, PA, Carpus

Patient Sizes

Child, teenager, woman, man

Software

 X-Light

Features

Panoramic, panoramic upgradable to 3D and ceph, panoramic with

ceph upgradable to 3D.

Footprint

140x110 cm without CEPH, 240 x 110cm with CEPH

Patient position

Standing or sitting

Wheelchair acessible

Yes
